Wire Winding M8 C Type Linear Rolling Ring Traverse Drive

Brand Name : qipang

Model Number : GP3-30

Certification : CE

Place of Origin : Shanxi, China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 units per month

Delivery Time : 10 working days

Packaging Details : Wooden box

Name : GP3-20 C type Rolling Ring Traverse Drive With Support Bracket

Other name : Rolling Ring Traverse Drive

Keywords : rolling ring drive

Model : GP3-30

Type : C type

Brand : XINDIAN

Origin : Shanxi, China

Warranty : 1 year

Weight : 7kg

Contact Now

GP3-30 C Type Ball Bearing Linear Movement Rolling Ring Traverse Drive For Wire Winding Machine China Factory Direct

Release assembly

The traverse drive features the release system. It allows the rolling rings to disengage from the shaft without the shutdown and so can be manually moved at any position on the shaft. It can traverse from the end part.

Parameters of linear traverse units
Model
d1
d2*
L1*
L2
L3
L4
L5
L6
Md
GP3-15
15
15
430
13
72
-
47
-
M8
GP3-20
20
14
450
14
102
40
41
25
2-M8
GP3-30
30
18
500
20
136
78
45
25
2-M10
GP3-40
40
30
880
25
172
112
75
50
2-M14
GP3-50
50
35
880
30
304
264
70
50
GP3-60
60
45
1130
30
304
264
70
50

Technical characteristics of the rolling ring drive series GP3
Model
Shaft diameter(mm)
Max pitch(mm)
Max thrust(N)
Max weight(kg)
GP3-15
15
11
110
11
GP3-20/22
20
16
160
16
GP3-30/25
30
25
260
26
GP3-40
40
32
420
42
GP3-50
50
40
700
70
GP3-60
60
48
1000
100

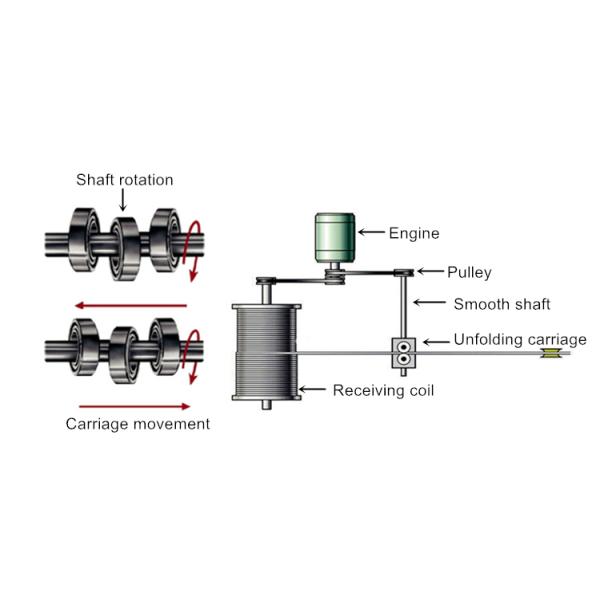

Wire Winding M8 C Type Linear Rolling Ring Traverse Drive

Parameters

Wire Winding M8 C Type Linear Rolling Ring Traverse Drive

1 - folding carriage; 2 - roller bracket; 3 - vertical roller; 4 - horizontal roller; 5 - smooth shaft; 6 - support bracket; 7 - guide rail;

8 - hairpin; 9 - restrictive nut carriage stroke; 10 - bolt for adjusting the distance of m/s rollers; 11 - keyway under the pulley

Wire Winding M8 C Type Linear Rolling Ring Traverse Drive

Reversal points

To keep symmetrical the angles of the fixed arm and the movable arm, torsion springs shall be kept pressed between the fixed and movable springs. The spring shall be replaced in case of inadequate pressure.

Wire Winding M8 C Type Linear Rolling Ring Traverse Drive

Business Scope:

Our company mainly products roller guides ,rolling ring drives ,wire take up machine, wire coil winding machine ,automatic coiling and packaging machine, microcomputer automatic rolled plate machine ,wire straightener , wire straightening and cutting machine, etc. (Some as follow picture show)
